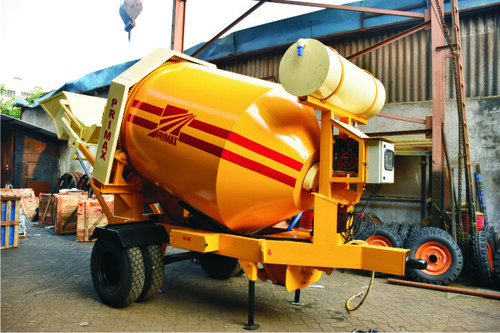

Name: Hydraulic Concrete Mixer
Brand: PRIMAX EQUIPMENT PVT. LTD.
Price: 450000.00 INR
Availability: InStock

Price 450000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Concrete Mixer Specification

Lifting Height
30 m (standard), customizable

Surface
Paint coated

Motor Power
5 HP Electric Motor / 6 HP Diesel Engine

Lifting Speed
18 m/min

Product Type
Hydraulic Concrete Mixer

General Use
Construction, mixing concrete on site

Material
Mild Steel / Heavy Duty Steel

Type
Hydraulic Hopper

Capacity
10/7 Cft (1 Bag) per batch

Weight (kg)
1100 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual lever operated hydraulic system

Cooling System
Air cooled

Method
Hydraulic Hopper loading

Voltage
220V/380V, 50 Hz

Dimension (L*W*H)
2600 x 1700 x 2600 mm (Approx.)

Feature
Portable, easy to operate, low maintenance

Color
Yellow / Custom

Drum Speed
20-22 RPM

Hopper Operation
Hydraulic operated hopper with heavy duty cylinder

Material Thickness
Drum: 5 mm (Bottom), 3 mm (Top)

Mobility
Towable, fitted with draw bar

Safety Feature
Overload protection and emergency stop

Water Feeding System
Manual

Mixing Blade
Heavy duty steel blades

Noise Level
Low

Chassis Type
Heavy duty, single chassis

Output (per hour)
8-10 m3/hour

No. of Tyres
2 Pneumatic wheels

Hydraulic Concrete Mixer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Year

Delivery Time
1 Week

Main Domestic Market
East India

Certifications
ISO 9001:2008

About Hydraulic Concrete Mixer

Owing to well-facilitated fabrication unit, we are actively affiliated in offering an excellent Concrete Mixer (Hydraulic) to our distinguished purchasers. The offered mixer is renowned for its strong construction, easy operation and functional simple design, as it is manufactured and designed using quality proven components and cutting-edge technology. Moreover, our quality approved Concrete Mixer (Hydraulic) is offered in varied technical specifications, and at most feasible prices.

Specifications:

Capacity: 10/7 cu.ft. (280-200 litres)
Type: Tilting TypeVibrator
Loading Hopper: Hydraulic/Mechanical
Wheels: C.I./Pneumatic Tyre

Efficient Mixing and Robust Build

This hydraulic concrete mixer leverages a heavy-duty steeled drum and chassis to withstand the rigors of construction sites. The hydraulic hopper simplifies material loading, and the powerful mixing blades ensure homogeneous concrete blends on every batch. Expected output up to 10 m per hour makes it suitable for both small and large projects.

Safe and User-Friendly Operation

Equipped with overload protection, emergency stop, and manual lever hydraulic controls, the mixer is designed for operator safety and ease of use. The low-noise, air-cooled system contributes to a comfortable working environment. All controls and maintenance points are placed for convenient access.

Designed for Mobility and Versatility

Fitted with two pneumatic wheels and a sturdy draw bar, the mixer is easily towable between sites. Its compact dimensions and portable build make it suitable for various construction environments. Color and lifting height options are customizable as per project requirements or client preferences.

FAQs of Hydraulic Concrete Mixer:

Q: How does the hydraulic hopper operate in this concrete mixer?

A: The hydraulic hopper is controlled via a manual lever-operated hydraulic system with a heavy-duty cylinder, allowing for seamless material loading with minimal manual effort during concrete preparation.

Q: What is the typical output per hour of this mixer?

A: This hydraulic concrete mixer delivers an output of approximately 8-10 cubic meters per hour, making it suitable for medium to large construction projects.

Q: What safety features are included in the mixer?

A: Safety is prioritized with overload protection and an emergency stop function, safeguarding operators and equipment during operation, even in demanding construction environments.

Q: When is this mixer most beneficial to use?

A: It is most effective on construction sites requiring on-site preparation of concrete, especially where frequent mobility, consistent mixes, and quick batch outputs are necessary.

Q: Where can this concrete mixer be used?

A: Ideal for construction applications across India, the mixers portable and towable design enables use at various job sites, including remote or challenging terrains.

Q: What is the lifting speed and height for material using this machine?

A: The mixer achieves a standard lifting speed of 18 meters per minute and a lifting height of 30 meters, facilitating rapid and efficient movement of materials during the mixing process.

Q: What are the benefits of using this hydraulic concrete mixer?

A: Key benefits include high durability, ease of operation, low noise, enhanced safety features, and reliable performance. Its low maintenance and portability further add to its value in construction workflows.
